HA36S LED High Mount Stop Lamp for Suzuki Alto Works / Turbo RS / Other Suzuki Models (Cube Block LED, Replacement Type)

Please make sure that the part is compatible with your vehicle before purchasing.

Product Information

Product Name: LED High Mount Stop Lamp
Model: HML-SZ16
Type: Replacement Type
LED Configuration: 16 Cube Block LEDs

Replacement LED high mount stop lamp featuring 16 specially designed cube block LEDs.

The cube block design diffuses the LED light to improve visibility while concealing the individual LED elements for a clean appearance when the lamp is turned off.

Product Features

16 Cube Block LEDs

Specially designed cube blocks diffuse the LED light to improve visibility.

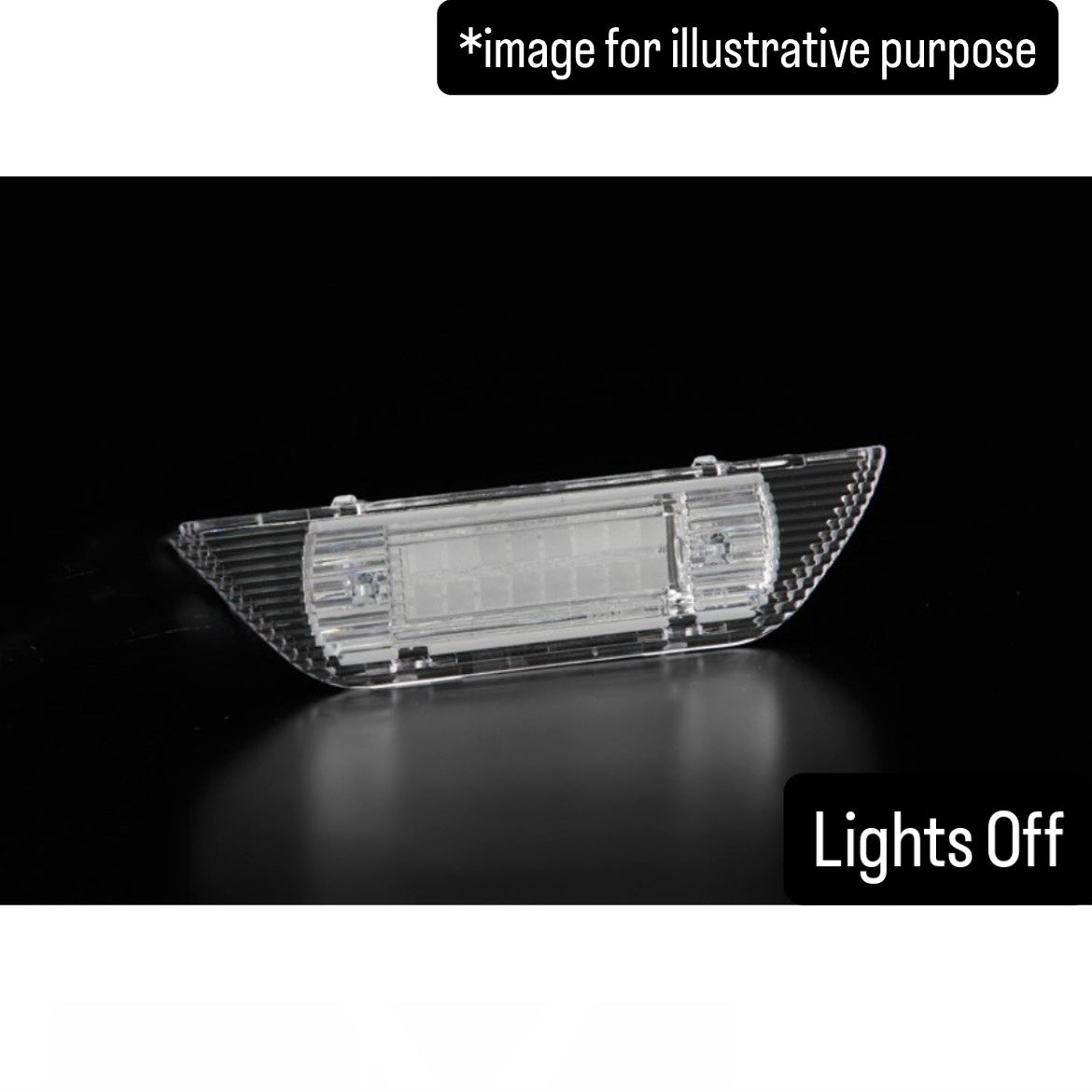

The individual LEDs are not directly visible through the lens, providing a cleaner appearance when the lamp is not illuminated.

Dedicated Clear Lens & Chrome Inner

A dedicated crystal-clear lens is designed to maximize the lighting effect of the cube block LEDs.

The internal section features a chrome-plated finish designed to conceal the internal components.

2 Lighting Functions

The lamp supports two lighting functions:

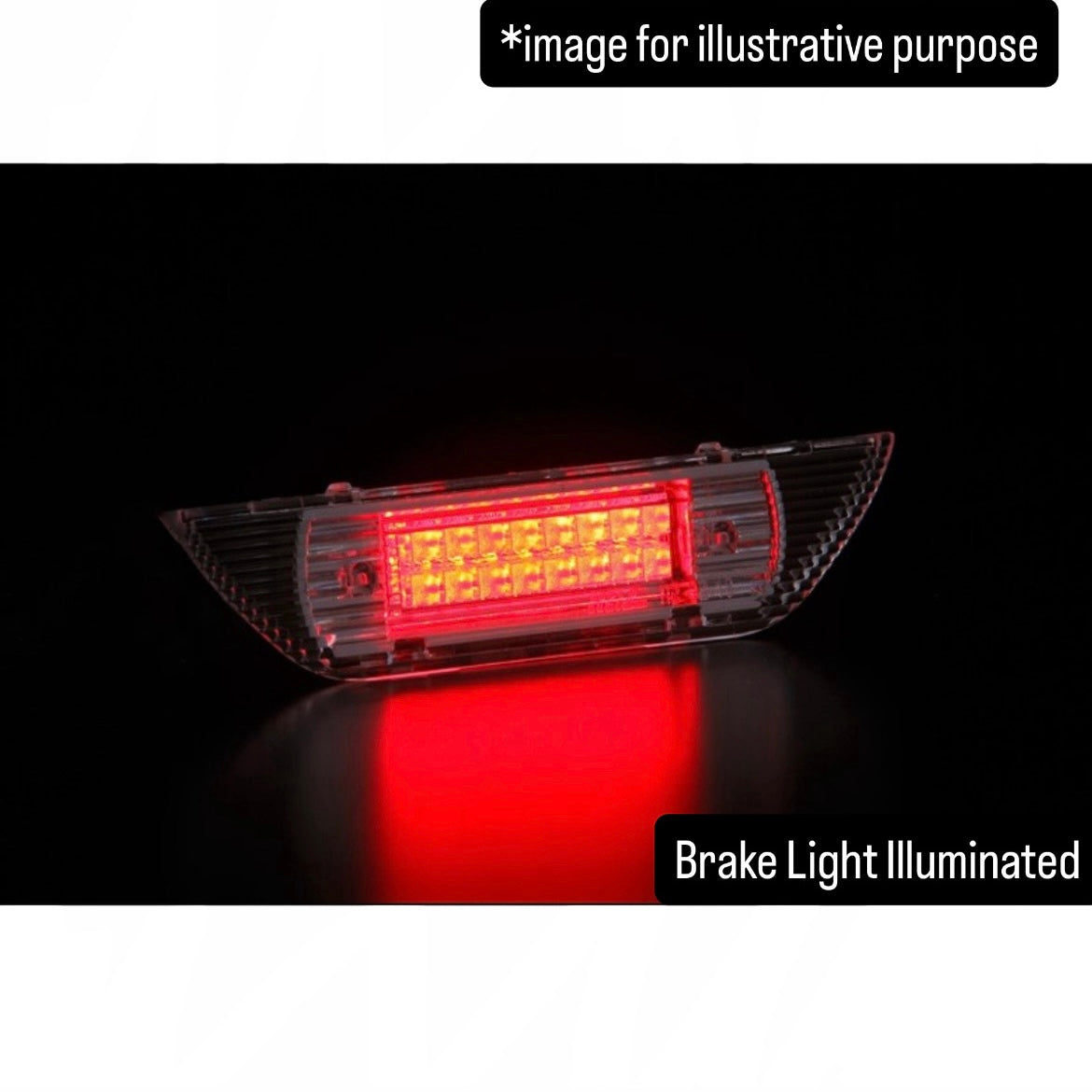

• Brake Light: Maximum brightness when braking

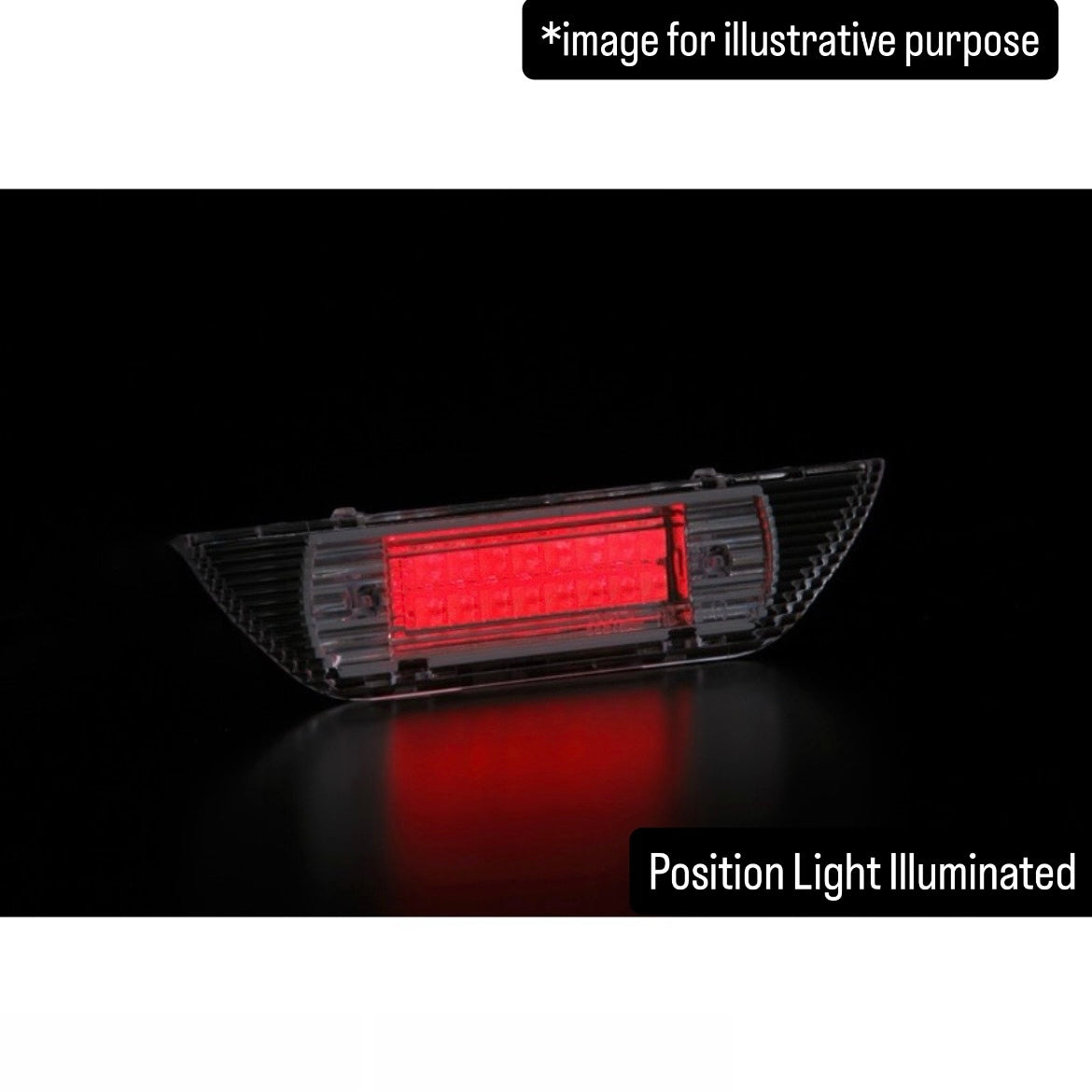

• Position Light: Available with additional wiring

The position light function requires a separate positive (+) wire connection.

Included Items

LED High Mount Stop Lamp × 1pc

Quantity: 1 Piece

Compatible Vehicles

SUZUKI

Lens Identification

Compatible Lens Marking: 35810-73H1

Please check the marking on the surface of your original lens before purchasing.

Installation – HA36S Alto Example

1. Slide the cover downward and remove it.
2. Remove the two bolts and remove the high mount stop lamp assembly.
3. Remove the bulb from the socket.
4. The lens is secured with retaining tabs. Carefully release the tabs using a precision screwdriver or similar tool and remove the lens.
5. Install this product onto the original base in reverse order.
6. If using the position light function, drill an appropriate hole for routing the positive (+) wire and connect the additional positive wire separately.
7. Insert the product-side socket into the original bulb socket.
8. Confirm proper operation, reinstall the lamp assembly and cover, and complete the installation.

If the lamp does not illuminate, the polarity may need to be reversed.

Important Polarity Information

Electrical polarity may differ depending on the vehicle model, model year, and grade.

If the lamp does not illuminate after installation, reverse the positive (+) and negative (−) polarity and check operation again.

Specifications

Note:

Please check the part compatibility before purchasing.

Please confirm that the original lens is marked "35810-73H1" before purchasing.

This product is not compatible with the base grade HA36S Alto.

Electrical polarity may vary depending on the vehicle model, model year, and grade. If the lamp does not illuminate, the polarity may need to be reversed.

The position light function requires additional wiring. A hole may also need to be drilled for routing the positive (+) wire.

Please confirm compatibility and installation requirements before placing your order.

We are not responsible for any labor costs for installation, removal, or repair.
